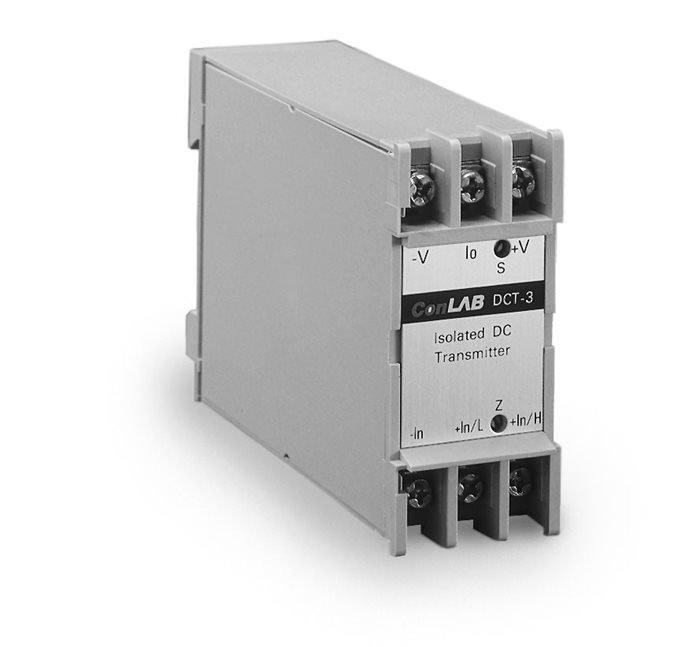

DCT-3 Three-wire transducer for DC voltage/current inputs
The DCT-3 isolated transmitter accepts input voltages of up to 100 Vdc or input currents of up to 100 mA and generates a proportional 4-20 mA process output current.
Auto-zero front-end circuitry provides a superb thermal stability and allows an input span as low as 1.5 mV or 2µA.
The DCT-3 three-wire configuration allows a loop load of 300Ω at a voltage supply of as low as 10 volts and 1000Ω at 24 V.
The unit is housed in a polycarbonate plastic enclosure, mounted on a standard DIN rail.
3-DCT הינו מתמר תלת-גידי מבודד גלוונית למדידת מתח או זרם DC .
טכנולוגית ה"תלת-גידי" מאפשרת שימוש ברכיבים מאד יציבים טרמית (אבל צרכני זרם "גדולים"). כתוצאה - DCT-3 מצטיין ביציבות טרמית מעולה ובדיוקים גבוהים.
בנוסף, המתמר יכול לתפקד גם במערכות שבהם מתח האספקה הנו נמוך (למשל10V).
יציבותו הגדולה מאפשרת מדידות של 0-1.5mV או 0-2 מיקרואמפר.
קונפיגורצית ה"תלת-גידי" מאפשרת להזין את המתמר ב 10V ולהפיק חוג זרם לעומס של 300 אוהם.
המתמר מותקן בתוך קופסה פלסטית מפוליקרבונט שמיועדת להתקנה על פס DIN סטנדרטי.
